LED Luminous Intensity and Beam Angle Measurement Systems

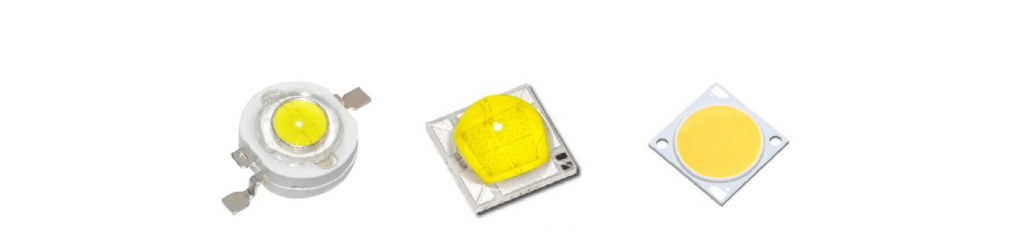

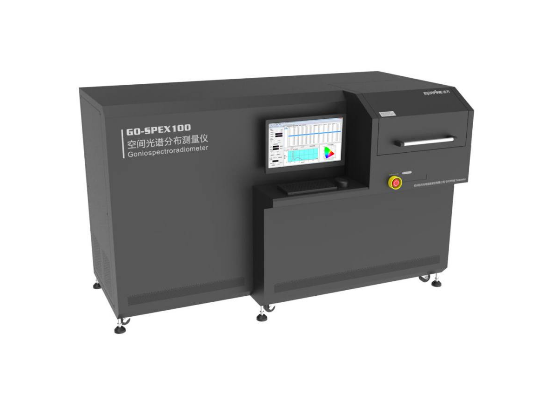

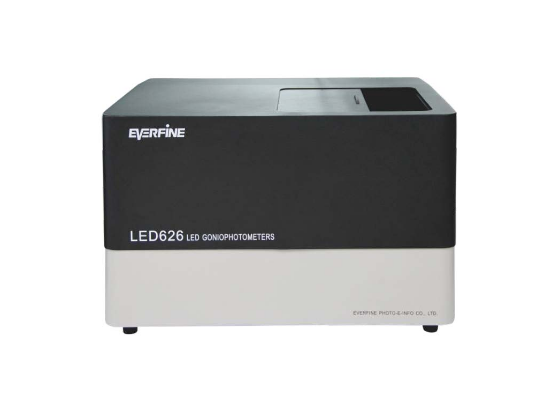

Tenme provides goniophotometer systems for LED and package consist of a goniophotometer integrates the dark room, standard lamps for calibration and power supply.
The measurable items are luminous intensity, beam angle, luminous flux, luminous efficiency, forward voltage, reverse voltage, forward current, and reverse current, etc. Some models are also equipped with spectrum measurement models to provide the measurement of color and spectrum distribution curves.
Main Features
1.Comply with CIE Pub. No.127 A/B Conditions
The test conditions fully meets CIE pub.No.127 Condition A or B. A national standard level photometer with a light area of 1cm² is used, with reference to the latest ISO/CIE international standard requirements.
2. High Accuracy Measurement & Positioning
Using a number of EVERFINE goniophotometer patent technology, with precision LED mechanical positioning device and integrated design center alignment system, the data measurement accuracy is very high.
3. Integrated Darkroom Design
The unique design of the integrated darkroom can effectively save laboratory space and reduce customer laboratory costs while meeting the standard requirements.
Typical Application Scenarios
