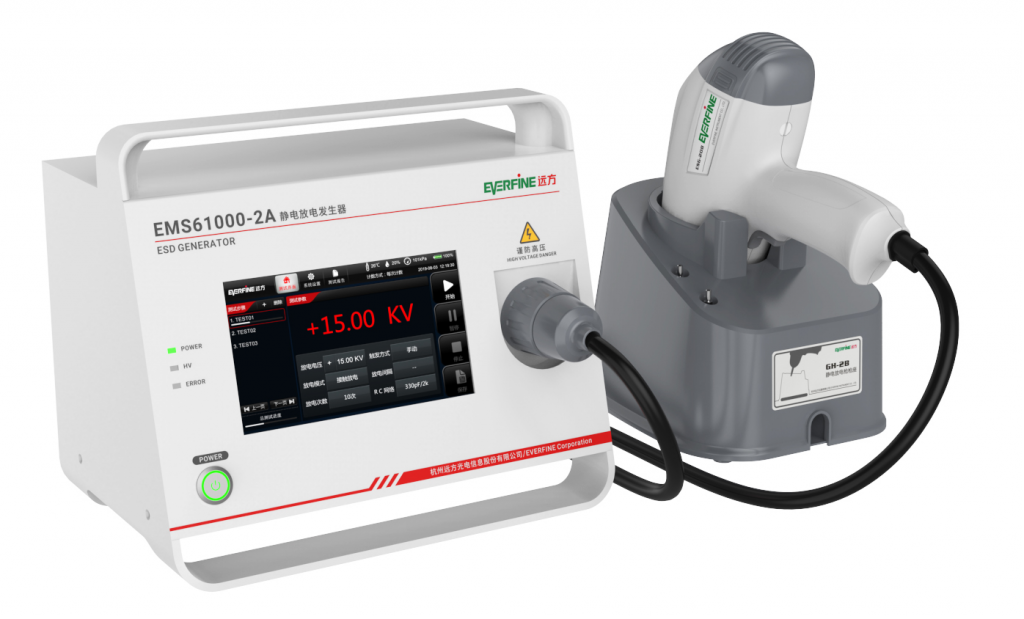

EMS61000-2A ESD GENERATOR
EMS61000-2A Electrostatic Discharge Generator is a reliable instrument specially designed according to the requirements of ESD (Electrostatic Discharge) measurement. The IEC mode, HBM mode(optional) and MM mode(optional) tests can be carried out conveniently by replacing the discharge module . Its performance conforms to the latest IEC 61000-4-2,EN61000-4-2 and Chinese standard GB/T17626.2. It is suitable for the ESD test of different types of semiconductor devices, electronic circuits and electronic devices.
Characteristics
- 7 inch LCD touch screen display, intelligent programmable control design;
- Self triggering of the main engine and automatic scanning of voltage rise, the process of voltage change can be directly observed.
- Voltage and switch polarity can be controlled directly in the gun body.
- With the function of recognizing the number of effective discharge times.
- With memory function, the lasted 10 sets of test data can be saved.
- Save and print test reports on computers.
- The discharge of the 20 /S (discharge interval: 0.050s) can be realized.
- Built in temperature and humidity sensor to show the test conditions.
- Built in IEC standard and user defined mode, the antistatic ability of the tested samples can be distinguished.
Technical Specifications
|
Model |
EMS61000-2A-20KV |
EMS61000-2A-30KV |
|
|
Discharge model |
IEC model（HBM、MM model is optional） |
||
|
Discharge mode |
Contact discharge or Air discharge |
||
|
Maximum output voltage |
±20kV Resolution： 0.001kV（0.100kV～9.999kV），0.01kV（10.00kV～20.00kV） |
±30kV Resolution： 0.001kV（0.100kV～9.999kV），0.01kV（10.00kV～30.00kV） |
|
|
Polarity Positive/Negative |
Positive/Negative |
||
|
Energy storage capacitance/Discharge resistance |
150PF/330Ω |
||
|
Discharge current rising time |
0.7 ns~1ns(IEC Mode) |
||
|
Discharge interval |
Discharge interval of contact discharge（0.050s～30.0s） Discharge interval of air discharge（1.0s～30.0s） HBM、MM Discharge interval（0.2s～30.0s） |
||
|
Discharge Modes |
Manual: press the “RUN” button of discharge module once for one time discharge |
||
|
Auto: continuous discharge as the preset interval |
|||
|
Number of discharge |
1~9999 (when discharge interval ≥ 0.1s) 1~100 (when discharge interval ＜ 0.1s) |
||
|
Electrode |
Conical contact discharge electrodes and spherical air discharge electrodes (IEC mode) |
||
